The levels get high trust in a wide field such as construction and engineering works and DIY.
 |
  |

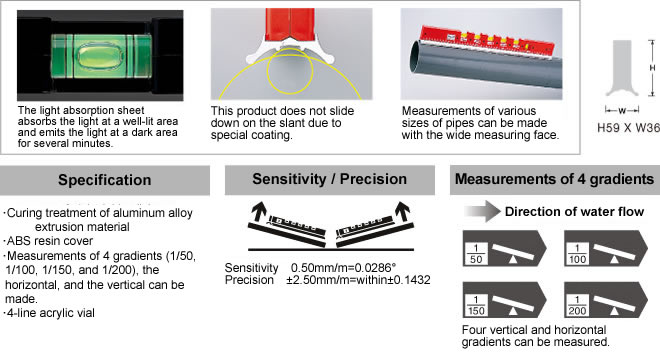

The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.This product does not slide down on the slant due to special coating.Measurements of various sizes of pipes can be made with the wide measuring face.● Curing treatment of aluminum alloy extrusion material● ABS resin cover● Measurements of 4 gradients (1/50, 1/100, 1/150, and 1/200), the horizontal, and the vertical can be made.● 4-line acrylic vial.Sensitivity / Precision/Sensitivity 0.50mm/m=0.0286°Precision ±2.50mm/m=within±0.1432H59 X W36

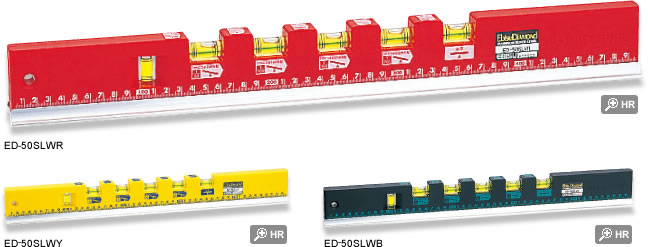

| Names | Size (mm) | Product mass | Product number | Color | quantity per carton |
|---|---|---|---|---|---|
| SLOPE LEVEL-2 Wide | 500 | 507g | ED-50SLWB | Black | 3 |
| 507g | ED-50SLWR | Red | 3 | ||
| 507g | ED-50SLWY | Yellow | 3 |
Please request for documents to person who hopes for download of high-resolution imagery. ID is issued.
