The levels get high trust in a wide field such as construction and engineering works and DIY.
 |
  |

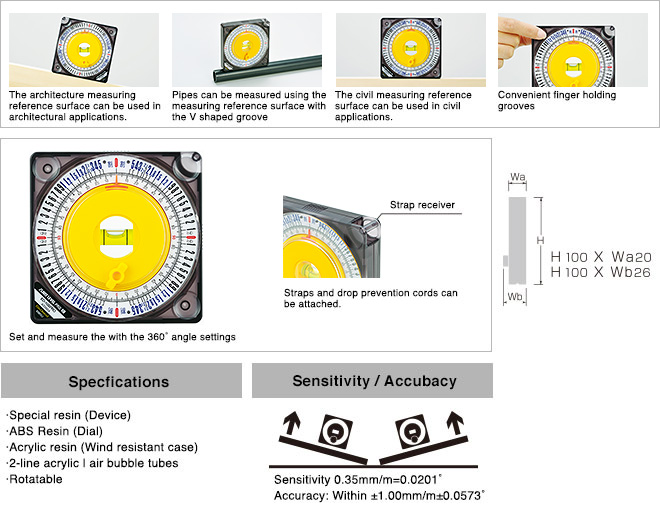

The architecture measuring reference surface can be used in architectural applications. Pipes can be measured using the measuring reference surface with the V shaped groove The civil measuring reference surface can be used in civil applications. Convenient finger holding grooves Set and measure the with the 360˚ angle settings Strap receiver Straps and drop prevention cords can be attached. SPECIFICATIONS Special resin (Device) ABS Resin (Dial) Acrylic resin (Wind resistant case) 2-line acrylic l air bubble tubes Rotatable SENSITIVITY / ACCURACY Sensitivity 0.35mm/m=0.0201˚ Accuracy: Within ±1.00mm/m±0.0573˚
| Names | Size (mm) | Product mass | Product number | Color | quantity per carton |
|---|---|---|---|---|---|

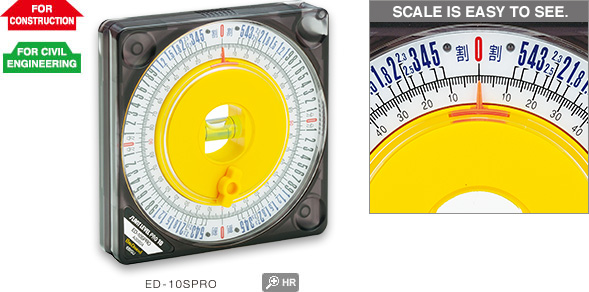

| Slant Level Pro 10 | 26×100×100 | 100g | ED-10SPRO | Black(Skeleton) | 6 |
Please request for documents to person who hopes for download of high-resolution imagery. ID is issued.
