ED-IL IDEAL LEVEL
About sensitivity and accuracy
Function marking descriptions Light absorption	45°vial

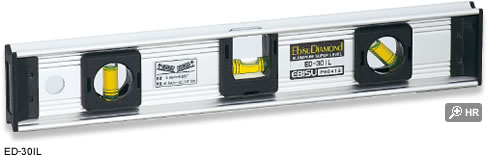

ED-30IL
Feature of this product

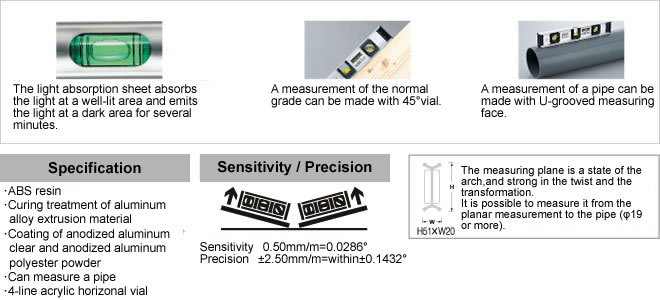

The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.A measurement of the normal grade can be made with 45°vial.A measurement of a pipe can be made with U-grooved measuring face.● ABS resin● Curing treatment of aluminum alloy extrusionmaterial● Coating of anodized aluminum clear and anodized aluminum polyester powder● Can measure a pipe● 4-line acrylic horizonal vialSensitivity 0.50mm/m=0.0286°Precision ±2.50mm/m=within±0.1432°

Names Size (mm) Product mass Product number Color quantity per carton
IDEAL LEVEL 300 174g ED-30IL Silver 6
380 217g ED-38IL 6
450 256g ED-45IL 6
600 338g ED-60IL 6
750 419g ED-75IL 6
900 499g ED-90IL 6
