ED-15TLM TRENDY LEVEL
About sensitivity and accuracy
Function marking descriptions Light absorption	45°vial	V-grooved	Magnet

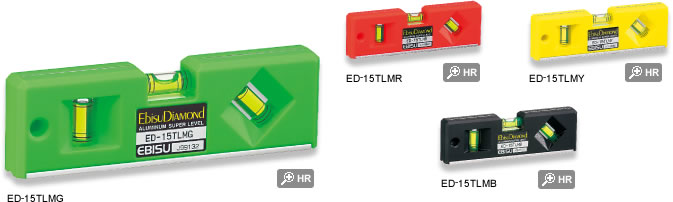

ED-15TLMG ED-15TLMR ED-15TLMY ED-15TLMB
Feature of this product

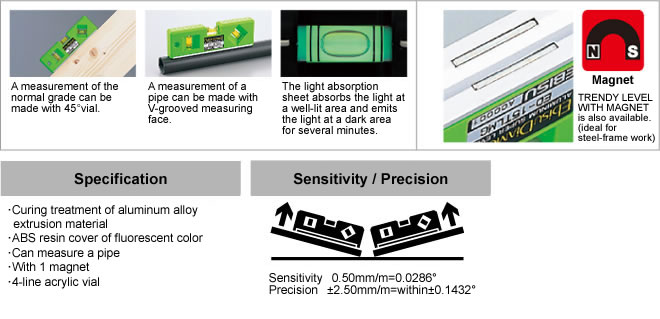

A measurement of the normal grade can be made with 45°vial.A measurement of a pipe can be made with V-grooved measuring face.The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.Ideal for steel-frame work with magnet.● Curing treatment of aluminum alloy extrusion material● ABS resin cover of fluorescent color● Can measure a pipe● With 1 magnet● 4-line acrylic vialSensitivity 0.50mm/m=0.0286°Precision ±2.50mm/m=within±01432°

Names Size (mm) Product mass Product number Color quantity per carton
TRENDY LEVEL
(WITH MAGNET)
20×46×150 115g ED-15TLMG Fluorescent green 6
115g ED-15TLMR Fluorescent red 6
115g ED-15TLMY Fluorescent yellow 6
115g ED-15TLMB Black 6
