ED-MW BASIC LEVEL WITH MAGNET (White)
About sensitivity and accuracy
Function marking descriptions Phosphorescent / 6 Lines / Lens / V groove Magnet
ED-MW ED-30MW ED-38MW ED-45MW ED-60MW ED-75MW ED-90MW ED-120MW ED-30MWR ED-38MWR ED-45MWR ED-60MWR ED-75MWR ED-90MWR ED-120MWR ED-30MWBL ED-38MWBL ED-45MWBL ED-60MWBL ED-75MWBL ED-90MWBL ED-120MWBL
Feature of this product

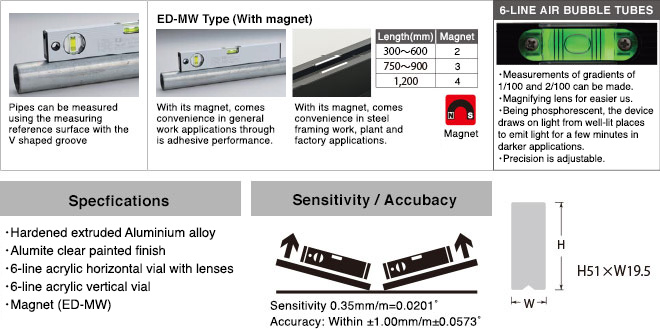

Pipes can be measured using the measuring reference surface with the V shaped groove ED-MW Type (With magnet) With its magnet, comes convenience in general work applications through is adhesive performance. With its magnet, comes convenience in steel framing work, plant and factory applications. ・Measurements of gradients of 1/100 and 2/100 can be made. ・Magnifying lens for easier us. ・Being phosphorescent, the device draws on light from well-lit places to emit light for a few minutes in darker applications. ・Precision is adjustable. SPECIFICATIONS ・Hardened extruded Aluminium alloy ・Alumite clear painted finish ・6-line acrylic horizontal vial with lenses ・6-line acrylic vertical vial ・Magnet (ED-MW) SENSITIVITY / ACCURACY Sensitivity 0.35mm/m=0.0201˚ Accuracy: Within ±1.00mm/m±0.0573˚

Names Size (mm) Product mass Product number Body Color Color quantity
per carton

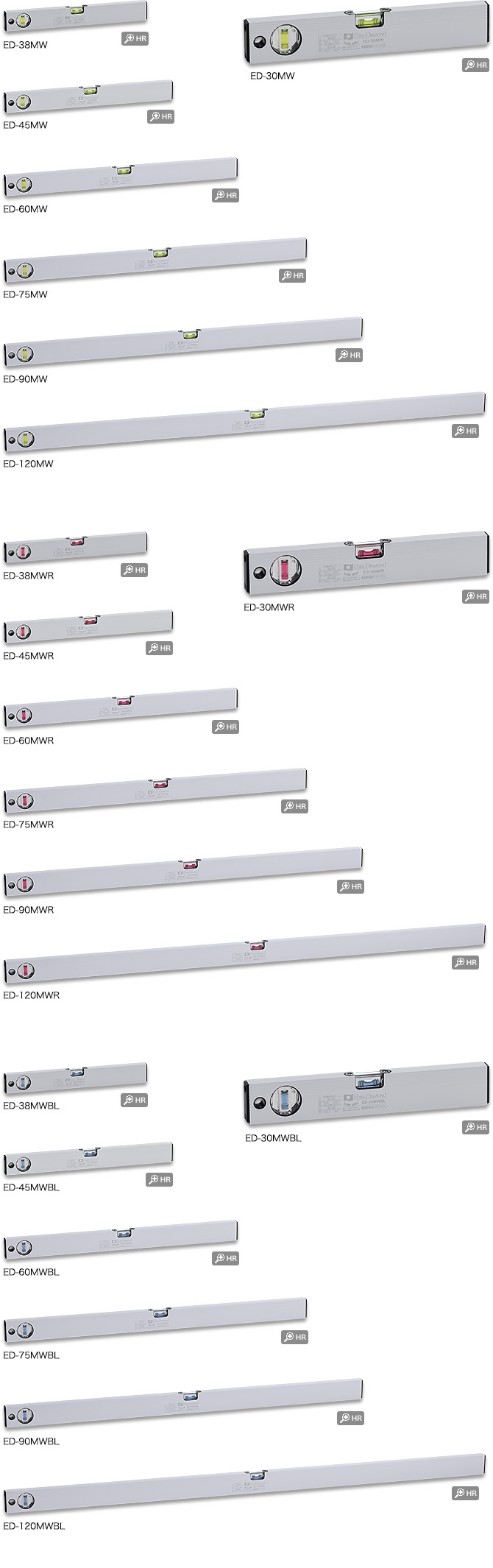

BASIC LEVEL WITH MAGNET (White) 300 296g ED-30MW White Green 6
380 339g ED-38MW 6
450 374g ED-45MW 6
600 445g ED-60MW 6
750 563g ED-75MW 6
900 631g ED-90MW 6
1,200 862g ED-120MW 1
300 296g ED-30MWR Red 6
380 339g ED-38MWR 6
450 374g ED-45MWR 6
600 445g ED-60MWR 6
750 563g ED-75MWR 6
900 631g ED-90MWR 6
1,200 862g ED-120MWR 1
300 296g ED-30MWBL Blur 6
380 339g ED-38MWBL 6
450 374g ED-45MWBL 6
600 445g ED-60MWBL 6
750 563g ED-75MWBL 6
900 631g ED-90MWBL 6
1,200 862g ED-120MWBL 1
