Angle Measureing Levels

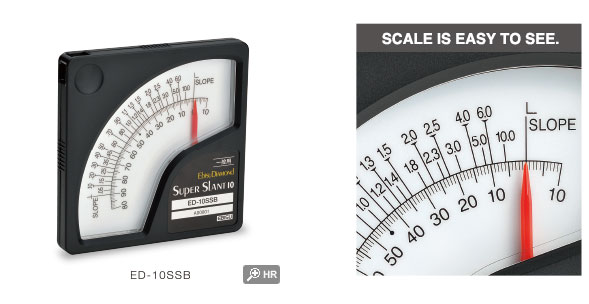

ED-10SS Super Slant 10 for General Use
About sensitivity and accuracy
Function marking descriptions V groove
Feature of this product

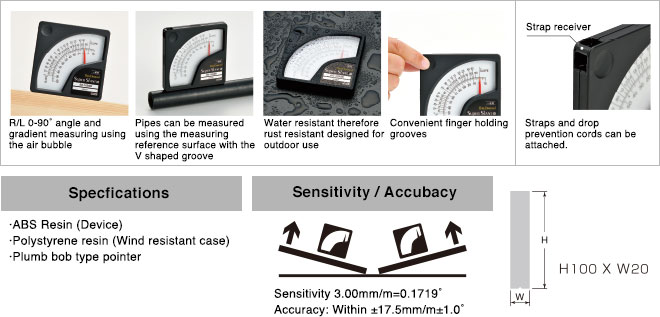

R/L0 -90˚ angle and gradient measuring using the air bubble. Pipes can be measured using the measuring reference surface with the V shaped groove. Water resistant therefore rust resistant designed for outdoor use. Convenient finger holding grooves. Straps and drop prevention cords can be attached. Strap receiver. Specfications ·ABS Resin (Device) ·Polystyrene resin (Wind resistant case) ·Plumb bob type pointer Sensitivity / Accubacy Sensitivity 3.00mm/m=0.1719˚ Accuracy: Within ±17.5mm/m±1.0˚

Names Size (mm) Product mass Product number Color quantity per carton
Super Slant 10 for Construction 12×100×100 59g ED-10SSB Black 6
