Digital level

ED-DGL DIGITAL LEVEL
About sensitivity and accuracy
Function marking descriptions Protector Light absorption 6-line Mirror Lens Magnet

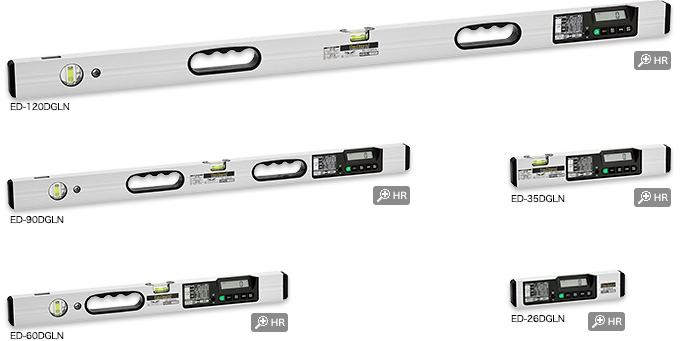

ED-120DGLN ED-90DGLN ED-35DGLN ED-60DGLN ED-26DGLN
Feature of this product

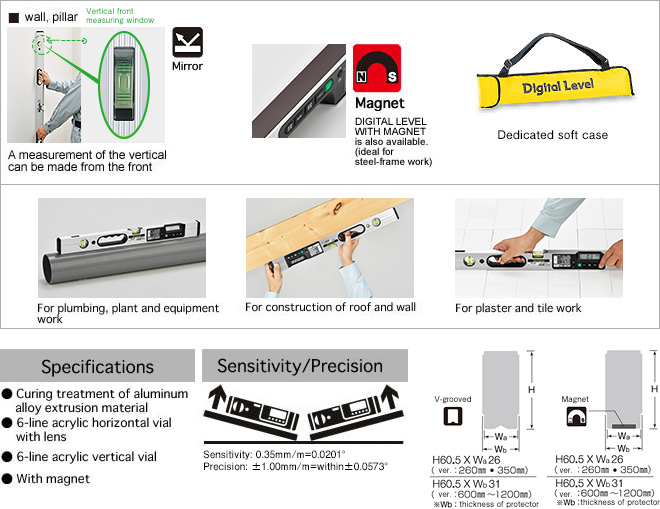

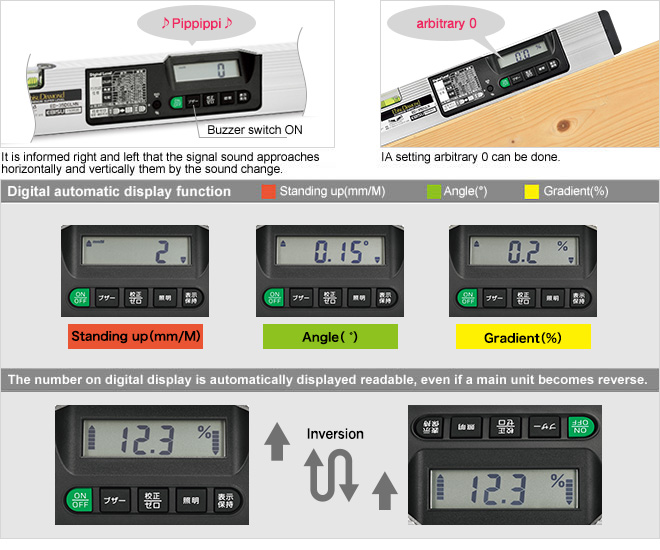

It is informed right and left that the signal sound approaches horizontally and vertically them by the sound change.A setting arbitrary 0 can be done.Digital automatic display functionThe number on digital display is automatically displayed readable, even if a main unit becomes reverse.● Curing treatment of aluminum alloy extrusion material● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vial● With magnetSensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°H60.5 X W26

Specifications of Digital Part
Digital Part Under 100mm Sensitivity 0.5mm/M=0.0286°(10 seconds)
Precision ±1mm/M=within±0.0573°
Over 100mm Sensitivity 0.5mm/M=0.0286°(10 seconds)
Precision ±2mm/M=within±0.1146°
Minimum unit displayed 1mm/M 0.05° 0.1%
Indicated Stability Time 10 seconds
Battery for use S-006P
Temperature for use -5-50℃
Caution
  • time until indicator becomes stable.
  • A result from a digital might be different from a result from a vial. (A vial is more accurate.)
Names Size (mm) Product mass Product number Color quantity per carton
DIGITAL LEVEL 260 379g ED-26DGLN Silver 1
350 503g ED-35DGLN
600 765g ED-60DGLN
900 1,040g ED-90DGLN
1,200 1,305g ED-120DGLN
DIGITAL LEVEL
WITH MAGNET
260 425g ED-26DGLMN
350 540g ED-35DGLMN
600 830g ED-60DGLMN
900 1,137g ED-90DGLMN
1,200 1,429g ED-120DGLMN
