PRODUCT CATALOG

The level corresponds with Building Regulations of Japan

ED-FC FAULT CHECK LEVEL
About sensitivity and accuracy
Function marking descriptions Protector Light absorption 6-line Lens Mirror
ED-200FCKN ED-150FCKN
Feature of this product

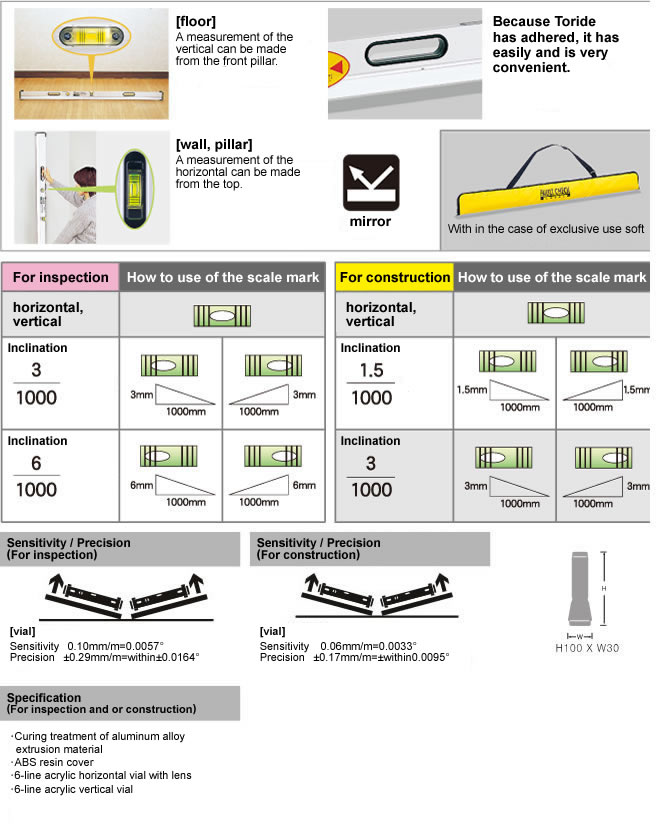

■Floor:A measurement of the vertical can be made from the front (wall, pillar)■wall, pillar:A measurement of the horizontal can be made from the top (floor)■Because Toride has adhered, it has easily and is very convenient.Sensitivity / Precision(For inspection)(vial)Sensitivity 0.10mm/m=0.0057°Precision ±0.29mm/m=within±0.0164°Sensitivity / Precision(For construction)(vial)Sensitivity 0.06mm/m=0.0033°Precision ±0.17mm/m=±within0.0095°Specification (For inspection and or construction)● Curing treatment of aluminum alloy extrusion material● ABS resin cover ● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vialH100 X W30

Names Size (mm) Product mass Product number Color quantity per carton
FAULT CHECK LEVEL
(For inspection)ED-FCKN
1500 1,659g ED-150FCKN Silver 1
2000 2,197g ED-200FCKN 1
FAULT CHECK LEVEL
(For construction)ED-FCSN
1500 1,659g ED-150FCSN 1
2000 2,197g ED-200FCSN 1
