PRODUCT CATALOG

Vial

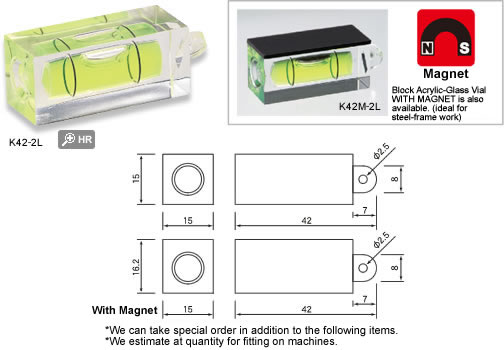

K42 Block Acrylic-Glass Vial
Function marking descriptions Magnet
K42-2L K42M-2L
Names Sensitivity Size (mm) Product
mass
Product
number
quantity
per carton
Block Acrylic-Glass Vial(2-line) 0.50mm/m=0.0286° 15×15×42 9g K42-2L 6
Block Acrylic-Glass Vial WITH MAGNETS(2-line) 15×16.2×42 11g K42M-2L 6

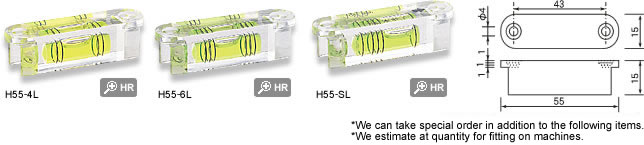

H55 Block Acrylic-Glass Vial
H55-4L H55-6L H55-SL
Names Sensitivity Size (mm) Product
mass
Product
number
quantity
per carton
Block Acrylic-Glass Vial(4-line) 0.50mm/m=0.0286° 15×15×55 10g H55-4L 6
Block Acrylic-Glass Vial(6-line) 0.35mm/m=0.0201° 10g H55-6L 6
Block Acrylic-Glass Vial(Measurements of gradient) 0.15mm/m=0.0086° 10g H55-SL 6

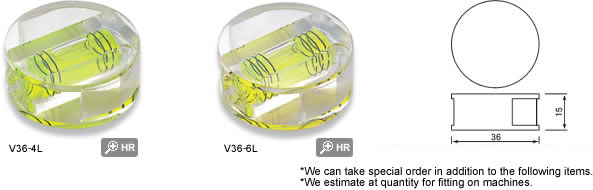

V36 Block Acrylic-Glass Vial
V36-4L V36-6L
Names Sensitivity Size (mm) Product
mass
Product
number
quantity
per carton
Block Acrylic-Glass Vial(4-line) 0.50mm/m=0.0286° φ36×15 13g V36-4L 6
Block Acrylic-Glass Vial(6-line) 0.35mm/m=0.0201° 13g V36-6L 6
Please request for documents to person who hopes for download of high-resolution imagery. ID is issued.REQUEST for DOCUMENTS and INQUIRY
