G-LEVEL for Civil Engineering

ED-GCAM G-LEVEL for Civil Engineering
About sensitivity and accuracy

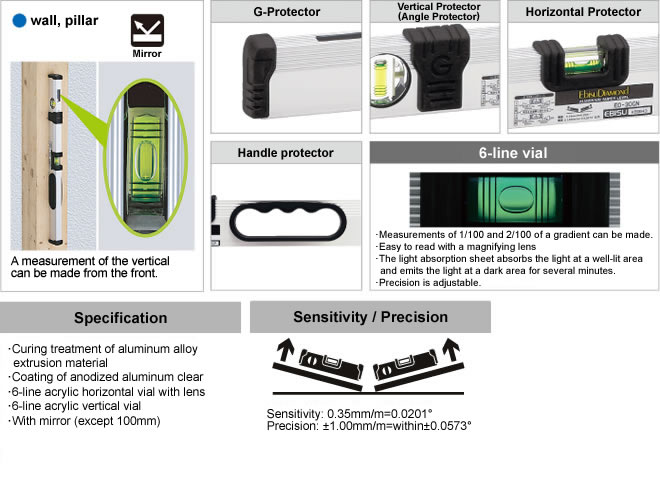

Function marking descriptions G-Protector	Light absorption	6-line	Lens	V-grooved	Mirror

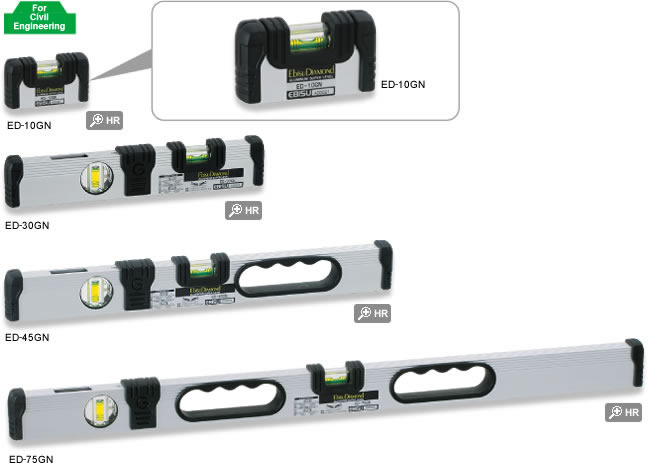

ED-10GN ED-30GN ED-45GNED-75GN
Feature of this product

A measurement of the vertical can be made from the front.● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Precision is adjustable.● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vialSensitivity: 0.35mm/m=0.0201°Precision: ±1.00mm/m=within±0.0573°● With mirror (except 100mm)

Names Size (mm) Product mass Product number Color quantity per carton
G-LEVEL for Civil Engineering 100 110g ED-10GN Silver 6
150 174g ED-15GN 6
180 188g ED-18GN 6
230 196g ED-23GN 6
300 252g ED-30GN 6
380 295g ED-38GN 6
450 338g ED-45GN 6
600 414g ED-60GN 6
750 497g ED-75GN 6
900 579g ED-90GN 6
1200 743g ED-120GN 1
