G-LEVEL for Civil Engineering

ED-GAM G-LEVEL WITH MAGNET AND ANGLE SCALE for Civil engineering
About sensitivity and accuracy
Function marking descriptions G-Protector	Light absorption	6-line	Lens	V-grooved	Mirror	Angle scale	Tripple-power magnet

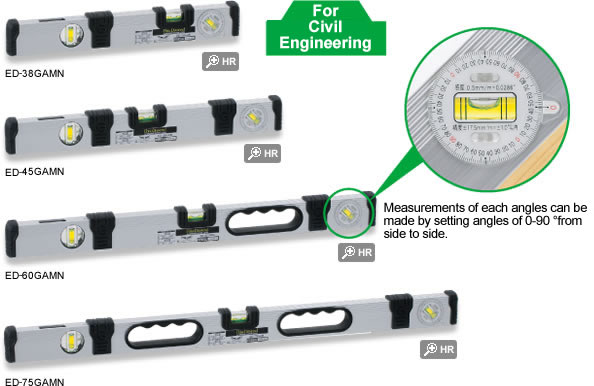

ED-38GAMN ED-45GAMN ED-60GAMN ED-75GAMN
Feature of this product

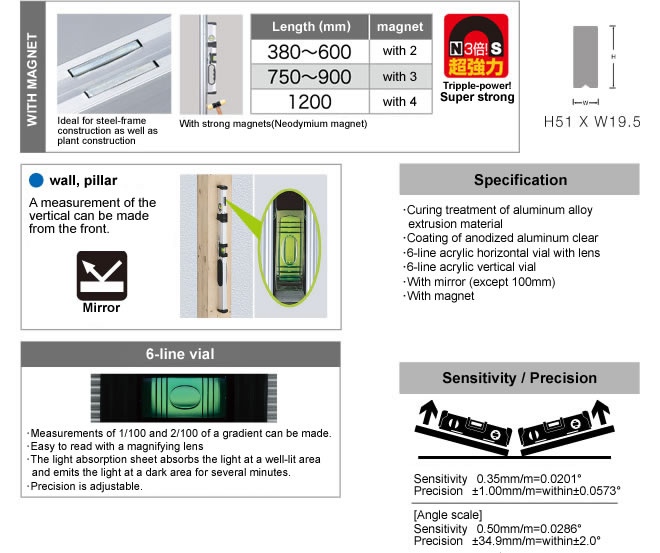

Measurements of each angles can be made by setting angles of 0-90 °from side to side.wall, pillarA measurement of the vertical can be made from the frontmirrorWith magnetIdeal for steel-frame construction as well as plant constructionWith strong magnets(Neodymium magnet)Tripple-power! Super strong● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Precision is adjustable.● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vial● With mirror● With magnet● With angle scaleSensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°[Angle scale]Sensitivity 0.50mm/m=0.0286°Precision ±34.9mm/m=within±2.0°H51 X W19.5

Names Size (mm) Product mass Product number Color quantity per carton
G-LEVEL WITH MAGNET AND ANGLE SCALE for Civil engineering 380 396g ED-38GAMN Silver 6
450 462g ED-45GAMN 6
600 527g ED-60GAMN 6
750 629g ED-75GAMN 6
900 711g ED-90GAMN 6
1200 937g ED-120GAMN 1
