Levels for plumbing

ED-SL SLOPE LEVEL
About sensitivity and accuracy
Function marking descriptions Light absorption Lens 3 gradients V-grooved Magnet

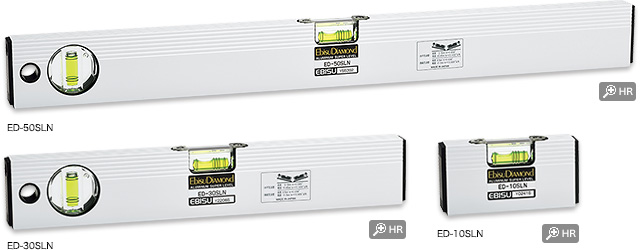

ED-50SLN ED-30SLN ED-10SLN

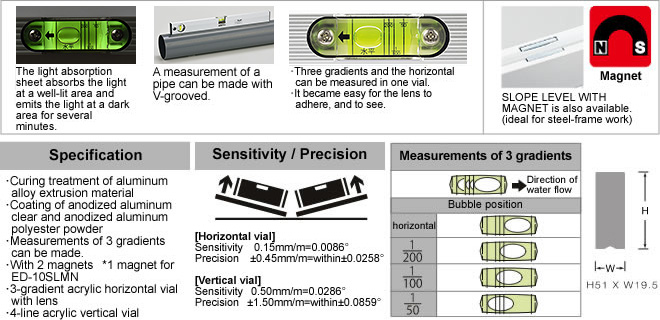

Feature of this product

The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.A measurement of a pipe can be made with V-grooved.● Three gradients and the horizontal can be measured in one vial. ● It became easy for the lens to adhere, and to see. SLOPE LEVEL WITH MAGNET is also available. (ideal for steel-frame work)● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear and anodized aluminum polyester powder● Measurements of 3 gradients can be made.● With 2 magnets *1 magnet for ED-10SLMN● 3-gradient acrylic horizontal vial with lens● 4-line acrylic vertical vial(Horizontal vial)Sensitivity 0.15mm/m=0.0086°Precision ±0.45mm/m=within±0.0258°(Vertical vial)Sensitivity 0.50mm/m=0.0286°Precision ±1.50mm/m=within±0.0859°H51 X W19.5

Names Size (mm) Product mass Product number Color quantity per carton
SLOPE LEVEL 100 79g ED-10SLN Silver 6
300 197g ED-30SLN
500 296g ED-50SLN
SLOPE LEVEL
With magnet
100 116g ED-10SLMN
300 294g ED-30SLMN
500 387g ED-50SLMN
