PRODUCT CATALOG

Levels for plumbing

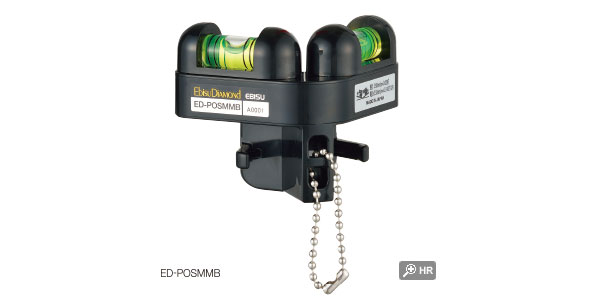

ED-POSMM POST LEVEL Mini
About sensitivity and accuracy
Function marking descriptions 6-line	The front, back, left and right	Magnet
ED-POSMM
Feature of this product

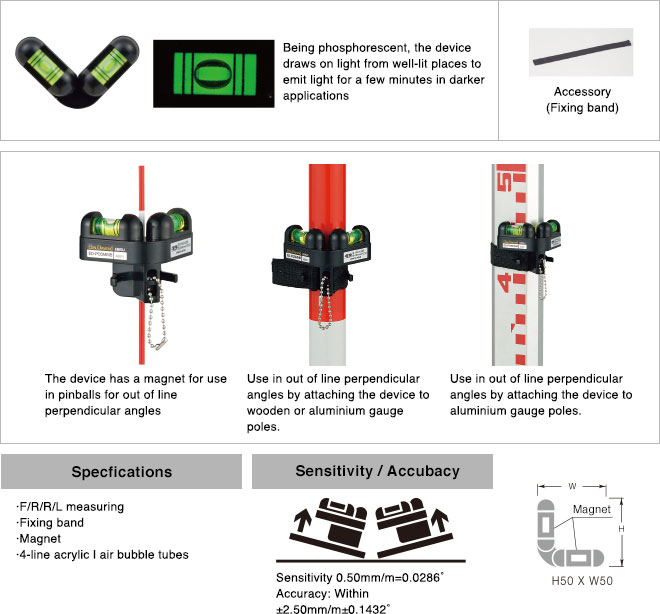

Being phosphorescent, the device draws on light from well-lit places to emit light for a few minutes in darker applications Accessory (Fixing band) The device has a magnet for use in pinballs for out of line perpendicular angles Use in out of line perpendicular angles by attaching the device to wooden or aluminium gauge poles. Use in out of line perpendicular angles by attaching the device to aluminium gauge poles. Specfications ·F/R/R/L measuring ·Fixing band ·Magnet ·4-line acrylic l air bubble tubes Sensitivity / Accubacy Sensitivity 0.50mm/m=0.0286˚ Accuracy: Within ±2.50mm/m±0.1432˚

Names Size (mm) Product mass Product number Color quantity per carton
POST LEVEL Mini 50×67×39 47g ED-POSMMB Black 6
