PARTS LIST
パーツ･部品リスト
Acrylic Bull’s-Eye Vial
- Acrylic Bull’s-Eye Vial20
- Acrylic Bull’s-Eye Vial17
- Four quarters
| Names | Sensitivity | Size (mm) | Product mass | Product number | Quantity per carton |
|---|---|---|---|---|---|
| Acrylic Bull’s-Eye Vial20 | 0.40mm/m=0.0229° | φ20×8 | 2g | F16CR | 6 |
| Acrylic Bull’s-Eye Vial17 | 0.40mm/m=0.0229° | φ17×7.5 | F14CR | 6 |

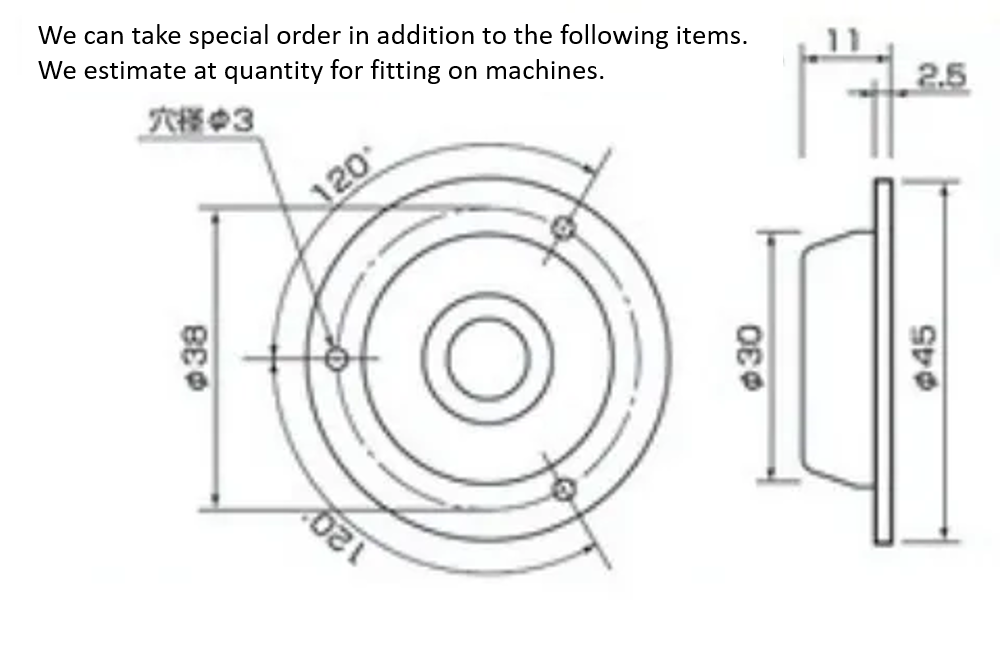

Circular Vial
- Circular Vial
- Circular Vial With magnet
- Four quarters
- Magnets
| Names | Sensitivity | Size (mm) | Product mass | Product number | Quantity per carton |
|---|---|---|---|---|---|
| Circular Vial | 0.50mm/m=0.0286° | φ45×11 | 10g | CI | 6 |
| Circular Vial With magnet | 0.50mm/m=0.0286° | φ45×12.2 | 16g | CIM | 6 |
Acrylic Bull’s-Eye Level KYU150
- Acrylic Bull’s-Eye Level KYU150
- Four quarters
| Names | Sensitivity | Size (mm) | Product mass | Product number | Quantity per carton |
|---|---|---|---|---|---|
| Acrylic Bull’s-Eye Level KYU150 | 0.50mm/m=0.0286° | φ20×10.4 | 3g | KYU150 | 6 |
Acrylic Bull’s-Eye Level
- Acrylic Bull’s-Eye Level φ11
- Acrylic Bull’s-Eye Level φ12
- Acrylic Bull’s-Eye Level φ13
- Acrylic Bull’s-Eye Level φ16
- Acrylic Bull’s-Eye Level φ20
- Acrylic Bull’s-Eye Level φ25
- Four quarters
| Names | Sensitivity | Size (mm) | Product mass | Product number | Quantity per carton |
|---|---|---|---|---|---|
| Acrylic Bull’s-Eye Level φ11 | 1.00mm/m=0.0573° | φ11×8.5 | 1g | R11 | 6 |
| Acrylic Bull’s-Eye Level φ12 | 0.50mm/m=0.0286° | φ12×8.5 | 1g | R12 | |
| Acrylic Bull’s-Eye Level φ13 | 1.50mm/m=0.0859° | φ13×8.0 | 1g | R13 | |
| Acrylic Bull’s-Eye Level φ16 | 0.50mm/m=0.0286° | φ16×8.5 | 2g | R16 | |
| Acrylic Bull’s-Eye Level φ20 | 0.50mm/m=0.0286° | φ20×8.5 | 3g | R20 | |
| Acrylic Bull’s-Eye Level φ25 | 0.50mm/m=0.0286° | φ25×8.5 | 4g | R25 |
Acrylic Bull’s-Eye Level with Magnet
- Acrylic Bull’s-Eye Level φ11 with Magnet
- Acrylic Bull’s-Eye Level φ12 with Magnet
- Acrylic Bull’s-Eye Level φ13 with Magnet
- Acrylic Bull’s-Eye Level φ16 with Magnet
- Acrylic Bull’s-Eye Level φ20 with Magnet
- Acrylic Bull’s-Eye Level φ25 with Magnet
- Four quarters
- Magnets
| Names | Sensitivity | Size (mm) | Product mass | Product number | Quantity per carton |
|---|---|---|---|---|---|
| Acrylic Bull’s-Eye Level φ11 with Magnet | 1.00mm/m=0.0573° | φ11×9.7 | 1g | R11M | 6 |
| Acrylic Bull’s-Eye Level φ12 with Magnet | 0.50mm/m=0.0286° | φ12×9.7 | 1g | R12M | |
| Acrylic Bull’s-Eye Level φ13 with Magnet | 1.50mm/m=0.0859° | φ13×9.2 | 1g | R13M | |
| Acrylic Bull’s-Eye Level φ16 with Magnet | 0.50mm/m=0.0286° | φ16×9.7 | 2g | R16M | |
| Acrylic Bull’s-Eye Level φ20 with Magnet | 0.50mm/m=0.0286° | φ20×9.7 | 4g | R20M | |
| Acrylic Bull’s-Eye Level φ25 with Magnet | 0.50mm/m=0.0286° | φ25×9.7 | 6g | R25M |
Acrylic Bull’s-Eye Level Mounted Type
- Acrylic Bull’s-Eye Level φ11 Mounted Type
- Acrylic Bull’s-Eye Level φ12 Mounted Type
- Acrylic Bull’s-Eye Level φ13 Mounted Type
- Acrylic Bull’s-Eye Level φ16 Mounted Type
- Acrylic Bull’s-Eye Level φ20 Mounted Type
- Acrylic Bull’s-Eye Level φ25 Mounted Type
| Size (mm) | A:External Form | B:Hole Pitch Circle Diameter | C:Vertical Wall Diameter | D:Spirit Level External Diameter | E:Hole Diameter |  |
|---|---|---|---|---|---|---|
| R11T | 28 | 22 | 16 | 11 | 2 | |
| R12T | 28 | 22 | 16 | 12 | 2 | |
| R13T | 28 | 22 | 16 | 13 | 2 | |
| R16T | 33 | 26 | 19 | 16 | 3 | |
| R20T | 37 | 30 | 23 | 20 | 3 | |
| R25T | 42 | 35 | 28 | 25 | 3 |
| Names | Sensitivity | Size (mm) | Product mass | Product number | Quantity per carton |
|---|---|---|---|---|---|
| Acrylic Bull’s-Eye Level φ11 Mounted Type | 1.00mm/m=0.0573° | φ28×11.5 | 7g | R11T | 6 |
| Acrylic Bull’s-Eye Level φ12 Mounted Type | 0.50mm/m=0.0286° | φ28×11.5 | 6g | R12T | |
| Acrylic Bull’s-Eye Level φ13 Mounted Type | 1.50mm/m=0.0859° | φ28×11.5 | 6g | R13T | |
| Acrylic Bull’s-Eye Level φ16 Mounted Type | 0.50mm/m=0.0286° | φ33×11.5 | 8g | R16T | |
| Acrylic Bull’s-Eye Level φ20 Mounted Type | 0.50mm/m=0.0286° | φ37×11.5 | 10g | R20T | |
| Acrylic Bull’s-Eye Level φ25 Mounted Type | 0.50mm/m=0.0286° | φ42×11.5 | 13g | R25T |
