The levels get high trust in a wide field such as construction and engineering works and DIY.
 |
  |

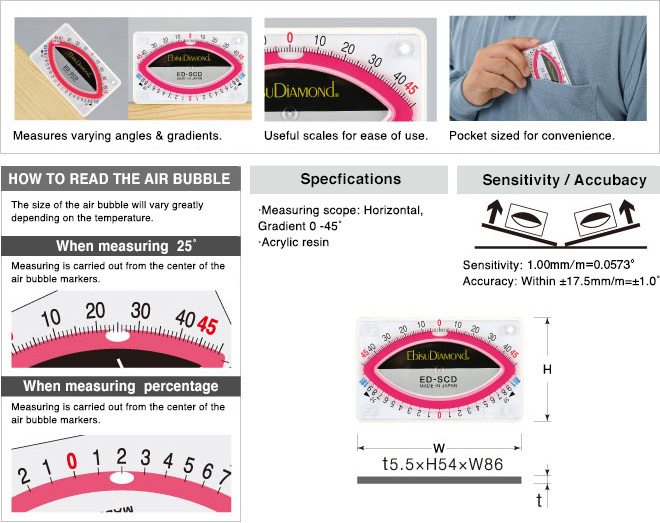

Measures varying angles & gradients. Useful scales for ease of use. Pocket sized for convenience. HOW TO READ THE AIR BUBBLE The size of the air bubble will vary greatly depending on the temperature. When measuring 25˚ Measuring is carried out from the center of the air bubble markers. When measuring percentage Measuring is carried out from the center of the air bubble markers. SPECIFICATIONS ·Measuring scope: Horizontal, Gradient 0 -45˚ ·Acrylic resin SENSITIVITY / ACCURACY Sensitivity: 0.70mm/m=0.0401˚ Accuracy: Within ±17.5mm/m=±1.0˚
| Names | Size (mm) | Product mass |
Product number |
Color | Vial Color | quantity per carton |
|---|---|---|---|---|---|---|

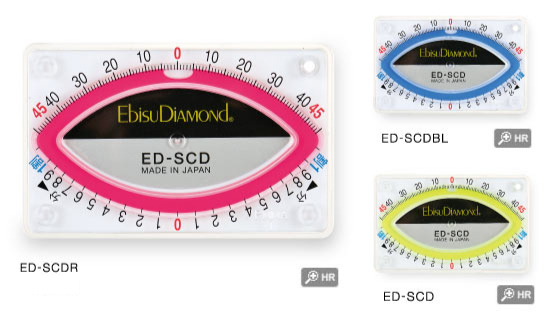

| SLANT CARD LEVEL | 5.5×54×86 | 23g | ED-SCD | White | Green | 6 |
| ED-SCDR | Red | |||||
| ED-SCDBL | Blue |
Please request for documents to person who hopes for download of high-resolution imagery. ID is issued.
