Angle Measureing Levels

ED-10PSL Slant Level 10
About sensitivity and accuracy
Function marking descriptions V groove
ED-10SS
Feature of this product

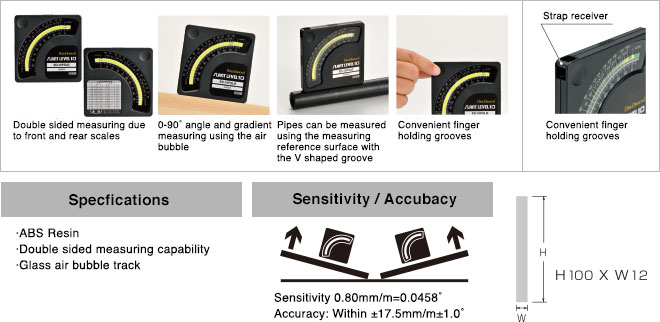

Double sided measuring due to front and rear scales 0-90˚ angle and gradient measuring using the air bubble Pipes can be measured using the measuring reference surface with the V shaped groove Convenient finger holding grooves Strap receiver Straps and drop prevention cords can be attached. SPECIFICATIONS ABS Resin Double sided measuring capability Glass air bubble track SENSITIVITY / ACCURACY Sensitivity 0.80mm/m=0.0458˚ Accuracy: Within ±17.5mm/m±1.0˚

Names Size (mm) Product mass Product number Color quantity per carton

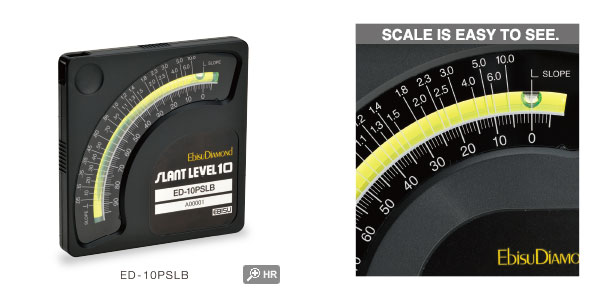

Slant Level 10 12×100×100 58g ED-10PSLB Black 6
