G-LEVEL for Constructions

ED-GC G-LEVEL for Constructions
About sensitivity and accuracy
Function marking descriptions G-Protector	Light absorption	6-line	Lens	V-grooved	Mirror

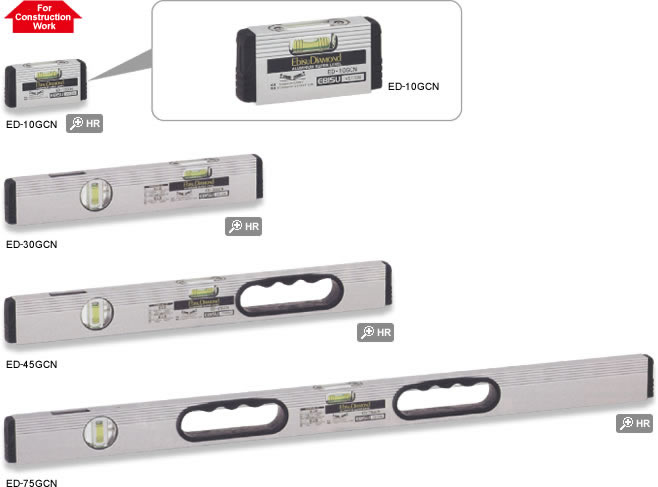

ED-10GCN ED-30GCN ED-45GCN ED-75GCN
Feature of this product

This level can be used to draw a line as a ruler.A measurement of the vertical can be made from the front.● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens.● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vial● With mirror (except 100mm)Sensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°H51 X W19.5

Names Size (mm) Product mass Product number Color quantity per carton
G-LEVEL for Constructions 100 83g ED-10GCN Silver 6
150 146g ED-15GCN 6
180 160g ED-18GCN 6
230 176g ED-23GCN 6
300 214g ED-30GCN 6
380 256g ED-38GCN 6
450 298g ED-45GCN 6
600 378g ED-60GCN 6
750 460g ED-75GCN 6
900 542g ED-90GCN 6
1200 706g ED-120GCN 1
