G-LEVEL for Constructions

ED-GCM G-LEVEL WITH MAGNET for Constructions
About sensitivity and accuracy
Function marking descriptions G-Protector	Light absorption	6-line	Lens	V-grooved	Mirror	Tripple-power magnet

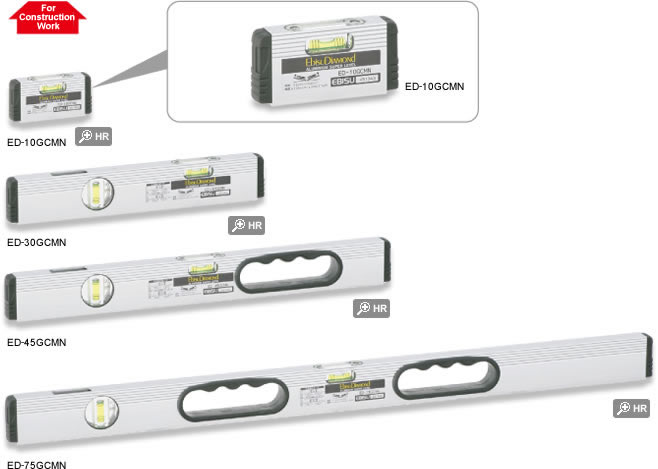

ED-10GCMN ED-30GCMNED-45GCMN ED-75GCMN

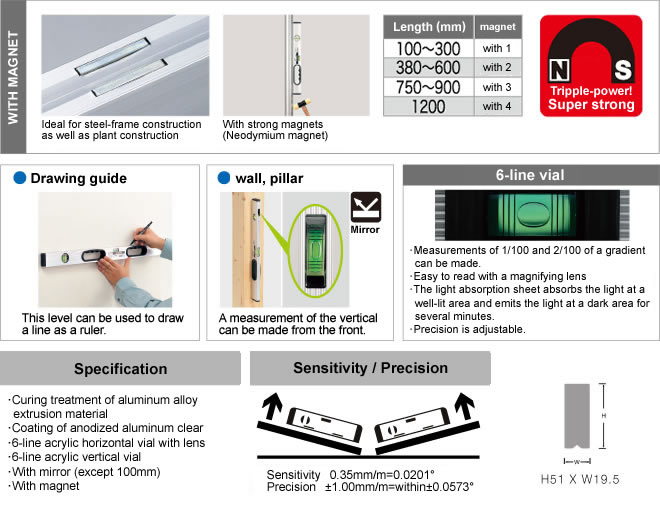

Feature of this product

This level can be used to draw a line as a ruler.A measurement of the vertical can be made from the front.● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Precision is adjustable.● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vial● With mirror (except 100mm)● With magnetSensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°H51 X W19.5

Names Size (mm) Product mass Product number Color quantity per carton
G-LEVEL
WITH MAGNET
for Constructions
100 129g ED-10GCMN Silver 6
150 185g ED-15GCMN 6
180 199g ED-18GCMN 6
230 220g ED-23GCMN 6
300 258g ED-30GCMN 6
380 302g ED-38GCMN 6
450 410g ED-45GCMN 6
600 492g ED-60GCMN 6
750 616g ED-75GCMN 6
900 698g ED-90GCMN 6
1200 862g ED-120GCMN 1
