G-LEVEL for Constructions

ED-GCA G-LEVEL WITH ANGLE SCALE for Constructions
About sensitivity and accuracy
Function marking descriptions G-Protector	Light absorption	6-line	Lens	V-grooved	Mirror	Angle scale

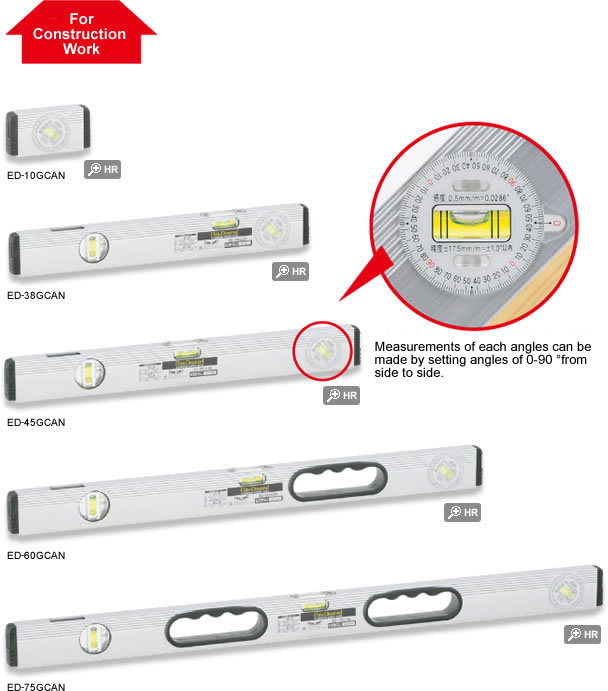

ED-10GCANED-38GCAN ED-45GCAN ED-60GCAN ED-75GCAN
Feature of this product

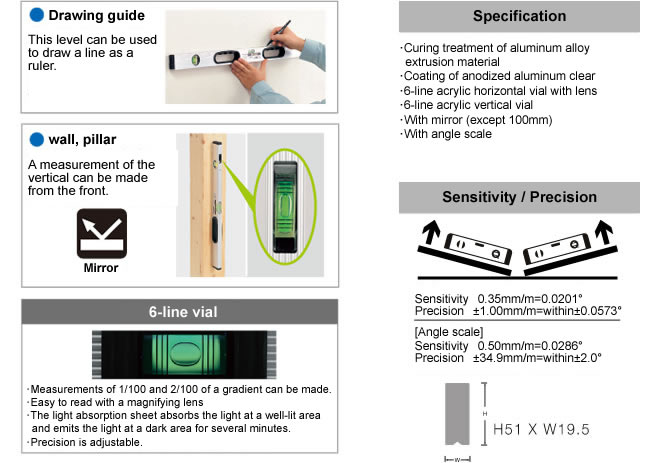

Measurements of each angles can be made by setting angles of 0-90 °from side to side.This level can be used to draw a line as a ruler.A measurement of the vertical can be made from the front.● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Precision is adjustable.● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vial● With mirror (except 100mm)● With angle scaleSensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°(Angle scale)Sensitivity 0.50mm/m=0.0286°Precision ±34.9mm/m=within±2.0°H51 X W19.5

Names Size (mm) Product mass Product number Color quantity per carton
G-LEVEL
WITH ANGLE SCALE
for Constructions
100 71g ED-10GCAN Silver 6
380 268g ED-38GCAN 6
450 301g ED-45GCAN 6
600 390g ED-60GCAN 6
【Special order】
G-LEVEL
WITH ANGLE SCALE
for Constructions
750 474g ED-75GCAN 6
900 556g ED-90GCAN 6
1200 720g ED-120GCAN 1
