G-LEVEL for Constructions

ED-GCAM G-LEVEL WITH MAGNET AND ANGLE SCALE for Constructions
About sensitivity and accuracy
Function marking descriptions G-Protector Light absorption 6-line Lens V-grooved	Mirror	Angle scale Tripple-power magnet

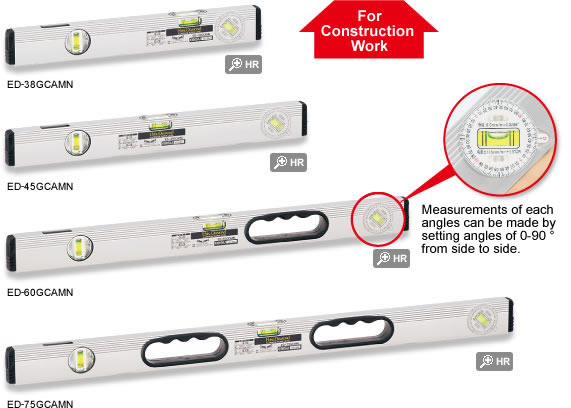

ED-38GCAMN ED-45GCAMN ED-60GCAMN ED-75GCAMN

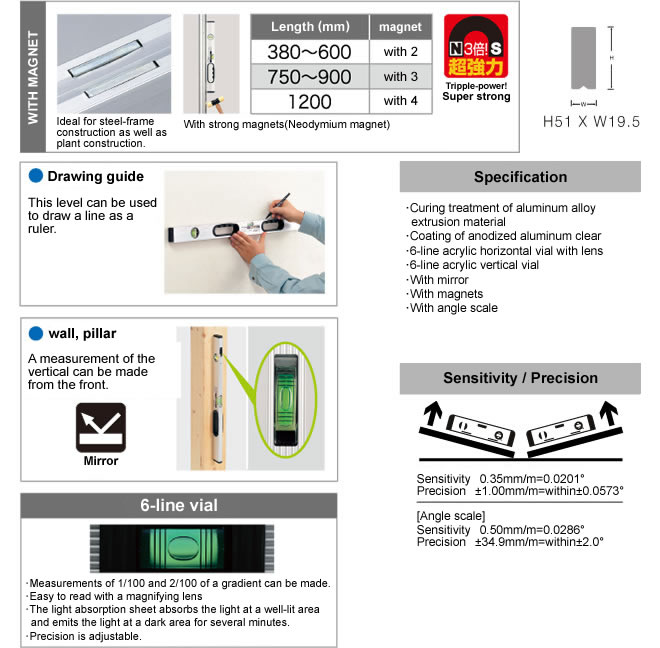

Feature of this product

With magnetIdeal for steel-frame construction as well as plant constructionWith strong magnets(Neodymium magnet)Tripple-power! Super strongIdeal for steel-frame work with magnet(Neodymium magnet)This level can be used to draw a line as a rulerA measurement of the vertical can be made from the front● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Precision is adjustable.● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vial● With mirror ● With magnets● With angle scaleSensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°(Angle scale)Sensitivity 0.50mm/m=0.0286°Precision ±34.9mm/m=within±2.0°H51 X W19.5

Names Size (mm) Product mass Product number Color quantity per carton
G-LEVEL WITH MAGNET AND ANGLE SCALE for Constructions 380 371g ED-38GCAMN Silver 6
450 414g ED-45GCAMN 6
600 500g ED-60GCAMN 6
【Special order】
G-LEVEL WITH MAGNET AND ANGLE SCALE for Constructions
750 629g ED-75GCAMN 6
900 711g ED-90GCAMN 6
1200 875g ED-120GCAMN 1
