ED-M ALUMINUM LEVEL WITH MAGNET (Silver)
About sensitivity and accuracy
Function marking descriptions Protector	Light absorption	6-line	Lens	V-grooved	Magnet

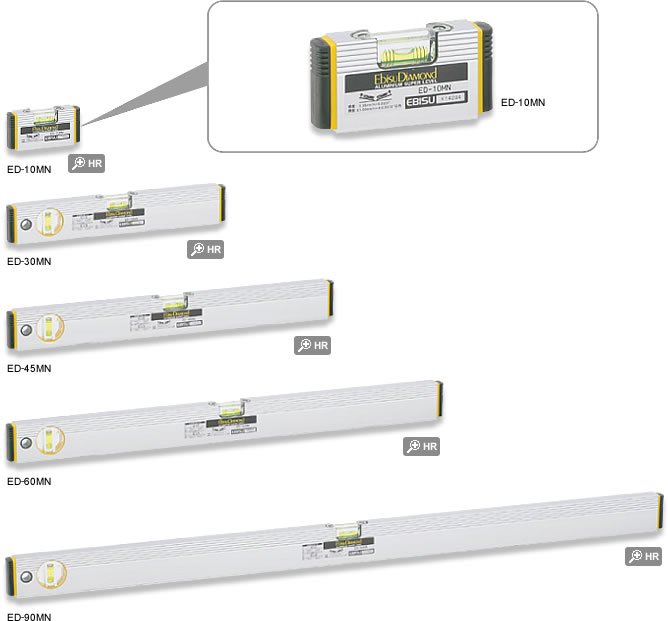

ED-10MN ED-30MN ED-45MN ED-60MNED-90MN
Feature of this product

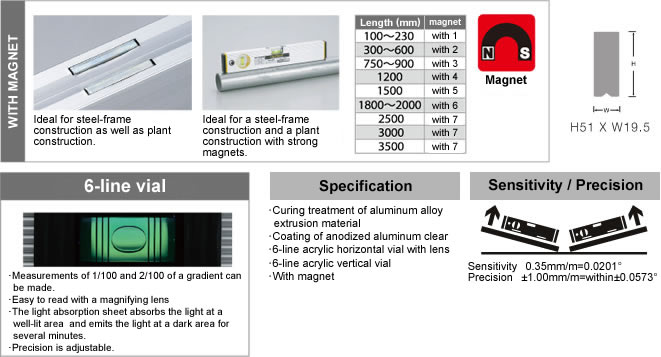

MagnetIdeal for steel-frame construction as well as plant construction.Ideal for a steel-frame construction and a plant construction with strong magnets.6-line vial● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Precision is adjustable.● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vial● With magnetSensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°H51 X W19.5

Names Size (mm) Product mass Product number Color quantity per carton
ALUMINUM LEVEL WITH MAGNET 100 116g ED-10MN Silver 6
150 160g ED-15MN 6
180 176g ED-18MN 6
230 202g ED-23MN 6
300 296g ED-30MN 6
380 339g ED-38MN 6
450 374g ED-45MN 6
600 445g ED-60MN 6
750 563g ED-75MN 6
900 631g ED-90MN 6
1200 862g ED-120MN 1
【Special order】
ALUMINUM LEVEL WITH MAGNET
1500 1,064g ED-150MN Silver 1
1800 1,328g ED-180MN 1
2000 1,348g ED-200MN 1
3000 1,985g ED-300MN 1
3500 2,258g ED-350MN 1
