ED-MY BASIC LEVEL WITH MAGNET (Yellow)
About sensitivity and accuracy
Function marking descriptions Protector	Light absorption	6-line	Lens	V-grooved	Magnet

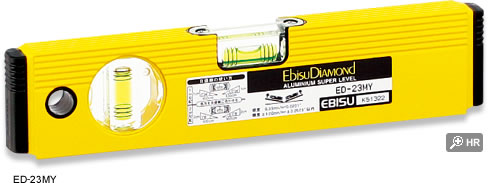

ED-23MY
Feature of this product

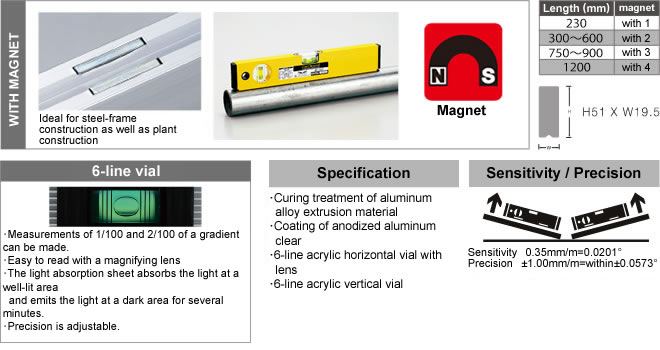

MagnetIdeal for steel-frame construction as well as plant construction6-line vial● Measurements of 1/100 and 2/100 of a gradient can be made.● Easy to read with a magnifying lens● The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.● Precision is adjustable.● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● 6-line acrylic horizontal vial with lens● 6-line acrylic vertical vialSensitivity 0.35mm/m=0.0201°Precision ±1.00mm/m=within±0.0573°H51 X W19.5

Names Size (mm) Product mass Product number Color quantity per carton
BASIC LEVEL WITH MAGNET 230 202g ED-23MY Yellow 6
300 296g ED-30MY 6
380 339g ED-38MY 6
450 374g ED-45MY 6
600 445g ED-60MY 6
750 563g ED-75MY 6
900 631g ED-90MY 6
1200 862g ED-120MY 1
