About sensitivity and accuracy
Function marking descriptions Phosphorescent / 6 Lines / Lens / V groove

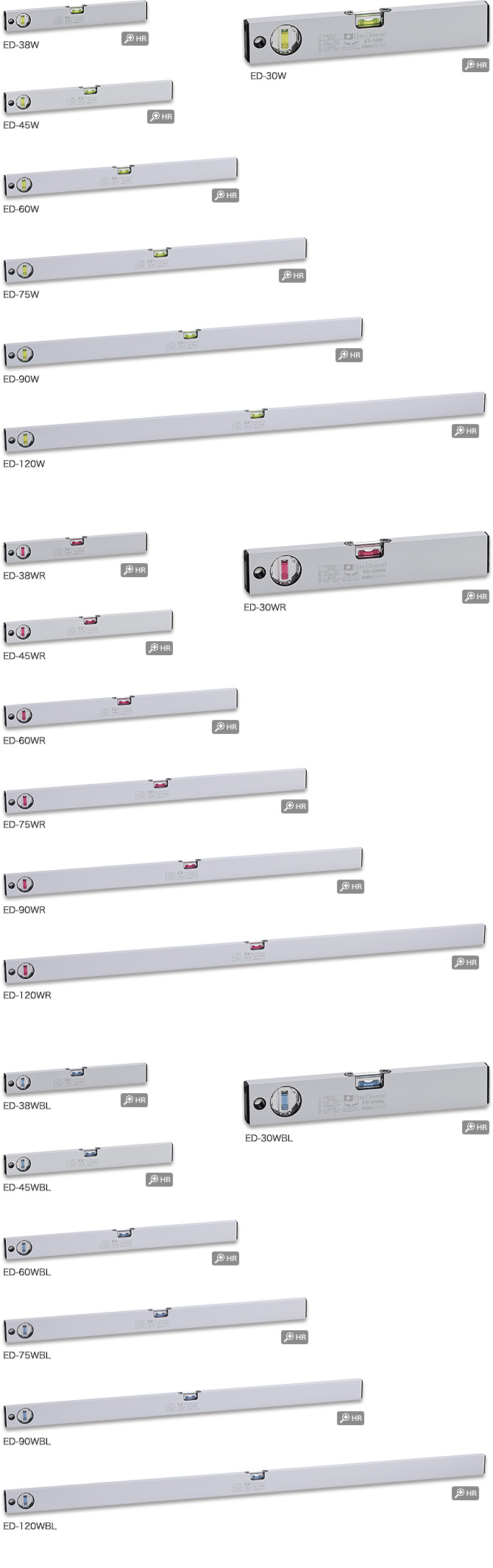

ED-W ED-30W ED-38W ED-45W ED-60W ED-75W ED-90W ED-120W ED-30WR ED-38WR ED-45WR ED-60WR ED-75WR ED-90WR ED-120WR ED-30WBL ED-38WBL ED-45WBL ED-60WBL ED-75WBL ED-90WBL ED-120WBL
Feature of this product

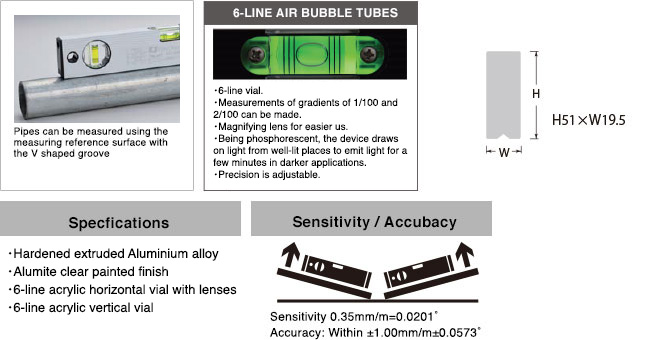

Pipes can be measured using the measuring reference surface with the V shaped groove. ・6-line vial ・Measurements of gradients of 1/100 and 2/100 can be made. ・Magnifying lens for easier us. ・Being phosphorescent, the device draws on light from well-lit places to emit light for a few minutes in darker applications. Precision is adjustable. SPECIFICATIONS ・Hardened extruded Aluminium alloy ・Alumite clear painted finish ・6-line acrylic horizontal vial with lenses ・6-line acrylic vertical vial SENSITIVITY / ACCURACY Sensitivity 0.35mm/m=0.0201˚ Accuracy: Within ±1.00mm/m±0.0573˚

Names Size (mm) Product mass Product number Body Color Color quantity
per carton
BASIC LEVEL (White) 300 200g ED-30W White Green 6
380 242g ED-38W 6
450 277g ED-45W 6
600 352g ED-60W 6
750 431g ED-75W 6
900 505g ED-90W 6
1,200 662g ED-120W 1
300 200g ED-30WR Red 6
380 242g ED-38WR 6
450 277g ED-45WR 6
600 352g ED-60WR 6
750 431g ED-75WR 6
900 505g ED-90WR 6
1,200 662g ED-120WR 1
300 200g ED-30WBL Blue 6
380 242g ED-38WBL 6
450 277g ED-45WBL 6
600 352g ED-60WBL 6
750 431g ED-75WBL 6
900 505g ED-90WBL 6
1,200 662g ED-120WBL 1
