ED-SLL SLIDER LEVEL
About sensitivity and accuracy
Function marking descriptions Light absorption	scale
ED-1.2SLLN/3倍に伸縮
Feature of this product

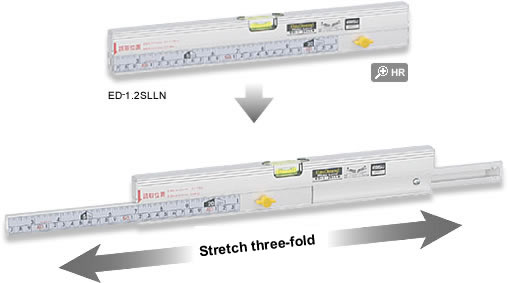

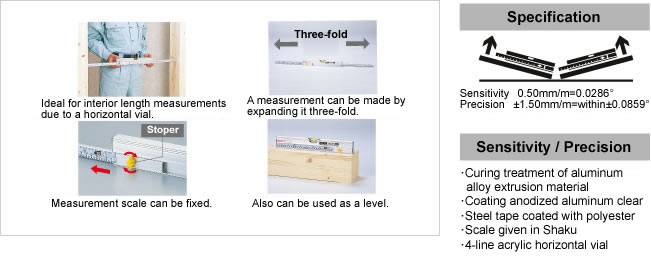

Ideal for interior length measurements due to a horizontal vial.A measurement can be made by expanding it three-fold.Measurement scale can be fixed.Also can be used as a level.● Curing treatment of aluminum alloy extrusion material● Coating anodized aluminum clear● Steel tape coated with polyester● Scale given in Shaku● 4-line acrylic horizontal vialSensitivity 0.50mm/m=0.0286°Precision ±1.50mm/m=within±0.0859°

Names Size (mm) Product mass Product number Color quantity per carton
At storage At extension
SLIDER LEVEL 364 909 353g ED-1.2SLLN Silver 3
697 1909 641g ED-2.3SLLN 3
1000 2818 885g ED-3.3SLLN 3
1273 3637 1,119g ED-4.2SLLN 3
1424 4091 1,246g ED-4.7SLLN 3
