ED-IL2 IDEAL LEVEL-2
About sensitivity and accuracy
Function marking descriptions Light absorption	6-line	V-grooved	45°vial	Tripple-power magnet

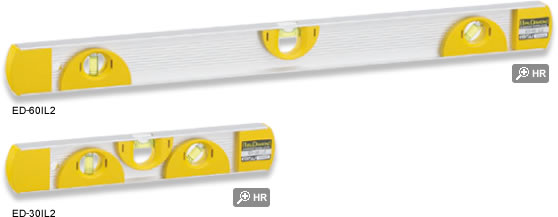

ED-60IL2 ED-30IL2
Feature of this product

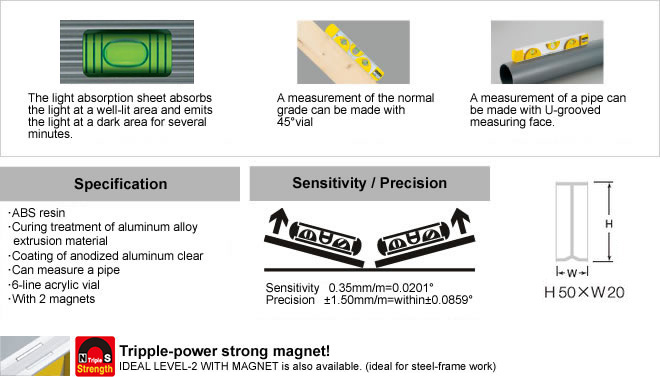

The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.A measurement of the normal grade can be made with 45°vial.A measurement of a pipe can be made with U-grooved measuring face.Tripple-power strong magnet!IDEAL LEVEL-2 WITH MAGNET(Neodymium magnet) is also available. (ideal for steel-frame work)● ABS resin● Curing treatment of aluminum alloy extrusion material● Coating of anodized aluminum clear● Can measure a pipe● 6-line acrylic vial● With 2 magnetsSensitivity 0.35mm/m=0.0201°Precision ±1.50mm/m=within±0.0859°H50 X W20

Names Size (mm) Product mass Product number Color quantity per carton
IDEAL LEVEL-2 300 181g ED-30IL2 Silver 6
380 215g ED-38IL2 6
450 245g ED-45IL2 6
600 308g ED-60IL2 6
750 372g ED-75IL2 6
900 435g ED-90IL2 6
IDEAL LEVEL-2
WITH MAGNET
300 211g ED-30IL2M Silver 6
380 245g ED-38IL2M 6
450 275g ED-45IL2M 6
600 338g ED-60IL2M 6
