ED-10HL HANDY LEVEL-2
About sensitivity and accuracy
Function marking descriptions Light absorption	V-grooved	Magnet

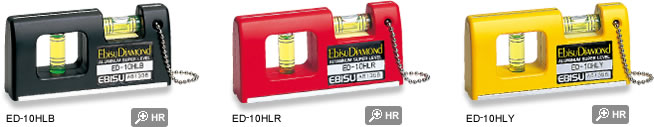

ED-10HLB ED-10HLR ED-10HLY

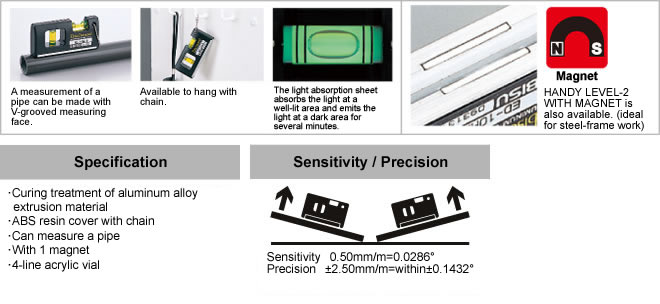

Feature of this product

A measurement of a pipe can be made with V-grooved measuring face.Available to hang with chain.The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.Ideal for steel-frame work with magnet.● Curing treatment of aluminum alloy extrusion material● ABS resin cover with chain● Can measure a pipe● With 1 magnet● 4-line acrylic vialSensitivity 0.50mm/m=0.0286°Precision ±2.50mm/m=within±0.1432°

Names Size (mm) Product mass Product number Color quantity per carton
HANDY LEVEL-2 20×46×100 55g ED-10HLB Black 6
55g ED-10HLR Red 6
55g ED-10HLY Yellow 6
HANDY LEVEL-2
(WITH MAGNET)
84g ED-10HLMB Black 6
84g ED-10HLMR Red 6
84g ED-10HLMY Yellow 6
