ED-TBL TOBI LEVEL
About sensitivity and accuracy
Function marking descriptions Protector	Light absorption	Hook	V-grooved	Tripple-power magnet

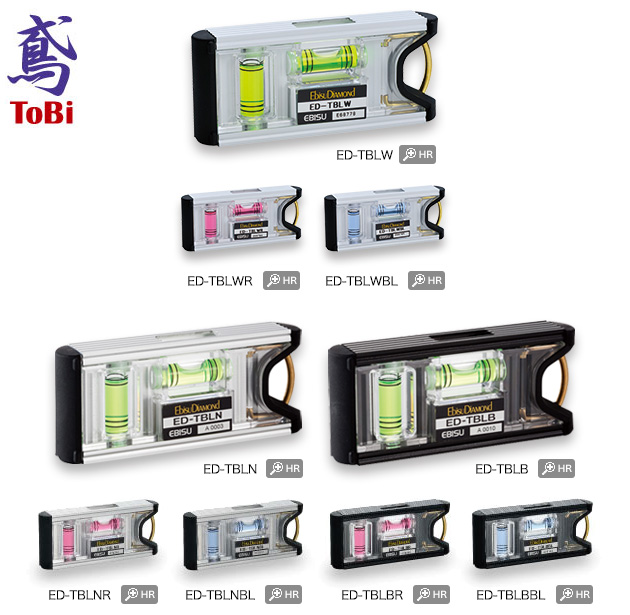

ED-TBLW ED-TBLWR ED-TBLWBL ED-TBLN ED-TBLNR ED-TBLNBL ED-TBLB ED-TBLBR ED-TBLBBL
Feature of this product

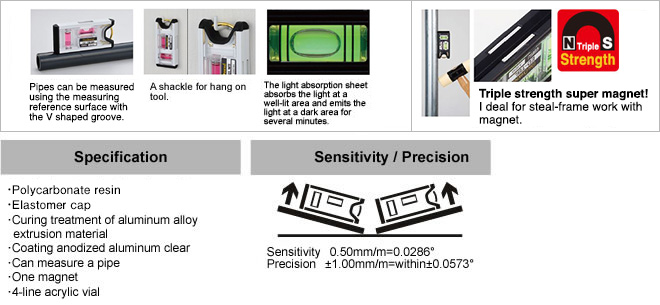

Pipes can be measured using the measuring reference surface with the V shaped groove. A shackle for hang on tool.The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.Tripple-power strong magnet!Ideal for steel-frame work with magnet(Neodymium magnet)● Curing treatment of aluminum alloy extrusion material● Coating anodized aluminum clear● Can measure a pipe● One magnet● 4-line acrylic vialSensitivity 0.50mm/m=0.0286°Precision ±1.00mm/m=within±0.0573°

Names Size(mm) Product mass Product number Body Color Color quantity
per carton
TOBI LEVEL 16(19)x43x100 81g ED-TBLW White Green 6
ED-TBLWR Red
ED-TBLWBL Blue
ED-TBLN Silver Green
ED-TBLNR Red
ED-TBLNBL Blue
ED-TBLB Black Green
ED-TBLBR Red
ED-TBLBBL Blue
