PRODUCT CATALOG

Each kind of level

ED-TBP TOBI LEVEL PRO
About sensitivity and accuracy
Function marking descriptions Phosphorescent / V groove / Super powerful
ED-TBPW ED-TBPWR ED-TBPWBL ED-TBPN ED-TBPNR ED-TBPNBL ED-TBPB ED-TB2BR ED-TBPBR
Feature of this product

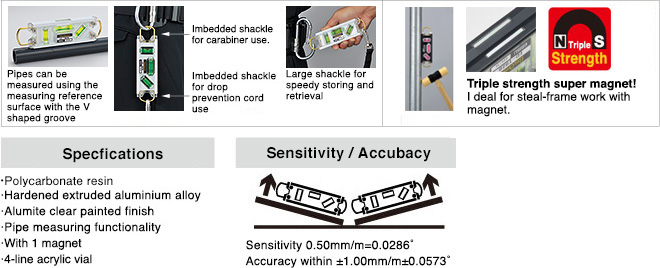

Pipes can be measured using the measuring reference surface with the V shaped groove. Imbedded shackle for carabiner use. Imbedded shackle for drop prevention cord use. Large shackle for speedy storing and retrieval. Triple strength super magnet! I deal for steal-frame work with magnet. (Noedymium magnet) SPECIFICATIONS ・Hardened extruded aluminium alloy ・Alumite clear painted finish ・Pipe measuring functionality ・With 1 magnet ・4-line acrylic vial SENSITIVITY / ACCURACY Sensitivity 0.50mm/m=0.0286˚ Accuracy within ±1.00mm/m±0.0573˚

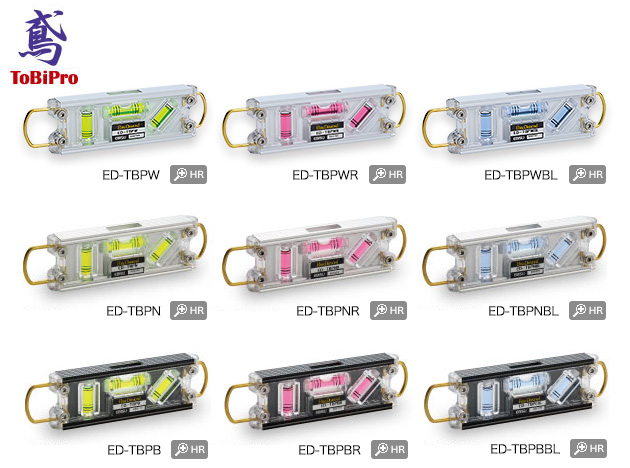

Names Size(mm) Product mass Product number Body color Color quantity
per carton
TOBI LEVEL PRO 16x43x160 110g ED-TBPW White Green 6
ED-TBPWR Red
ED-TBPWBL Blue
ED-TBPN Silver Green
ED-TBPNR Red
ED-TBPNBL Blue
ED-TBPB Black Green
ED-TBPBR Red
ED-TBPBBL Blue
Please request for documents to person who hopes for download of high-resolution imagery. ID is issued.REQUEST for DOCUMENTS and INQUIRY
