ED-20GDLM G-DIRECTOR LEVEL
About sensitivity and accuracy
Function marking descriptions G-Protector	Light absorption	45°vial	V-grooved	Tripple-power magnet

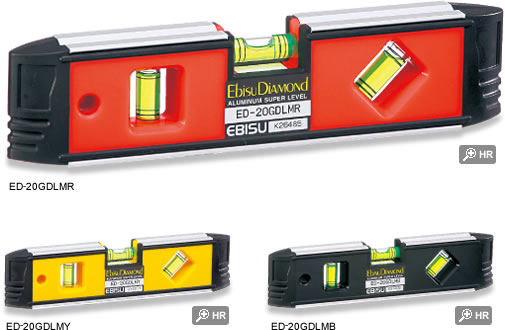

ED-20GDLMR ED-20GDLMYED-20GDLMB

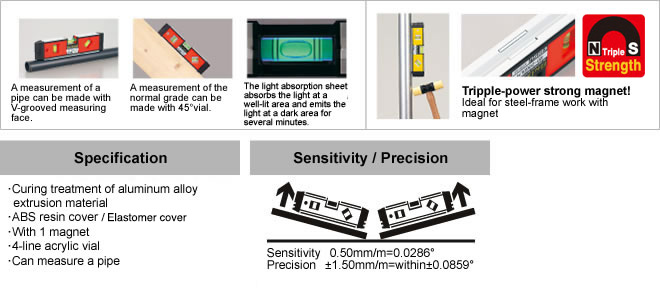

Feature of this product

A measurement of a pipe can be made with V-grooved measuring face.A measurement of the normal grade can be made with 45°vial.The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.Tripple-power strong magnet!Ideal for steel-frame work with magnet(Neodymium magnet)● Curing treatment of aluminum alloy extrusion material● ABS resin cover● With 1 magnet● 4-line acrylic vial● Can measure a pipeSensitivity 0.50mm/m=0.0286°Precision ±1.5mm/m=within±0.0859°

Names Size (mm) Product mass Product number Color quantity per carton
G-DIRECTOR LEVEL
(WITH MAGNET)
22×46.5×200 148g ED-20GDLMB Black 6
148g ED-20GDLMR Red 6
148g ED-20GDLMY Yellow 6
