PRODUCT CATALOG

Each kind of level

ED-23GTOLM G-TORPEDO LEVEL
About sensitivity and accuracy
Function marking descriptions G-Protector	Light absorption	45°vial	V-grooved	Tripple-power magnet

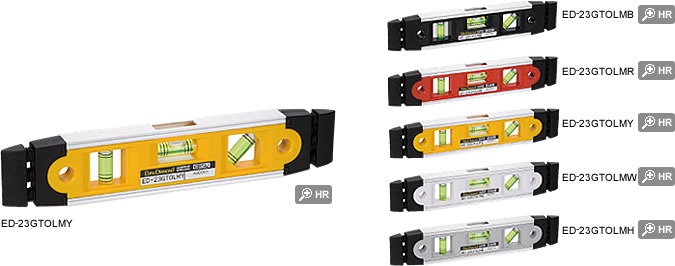

ED-23GTOLMY ED-23GTOLMB ED-23GTOLMRED-23GTOLMY ED-23GTOLMW ED-23GTOLMH
Feature of this product

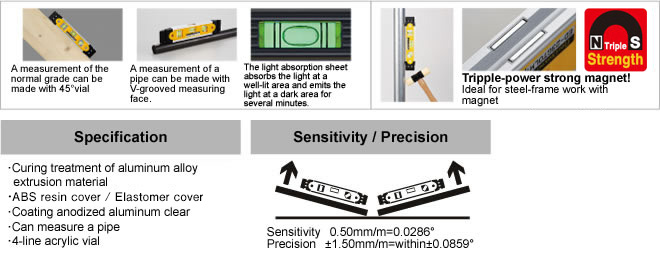

A measurement of the normal grade can be made with 45°vial.A measurement of a pipe can be made with V-grooved measuring face.The light absorption sheet absorbs the light at a well-lit area and emits the light at a dark area for several minutes.Tripple-power strong magnet!Ideal for steel-frame work with magnet(Neodymium magnet)● Curing treatment of aluminum alloy extrusion material● Coating anodized aluminum clear● Can measure a pipe● 4-line acrylic vialSensitivity 0.50mm/m=0.0286°Precision ±1.50mm/m=within±0.0859°

Names Size (mm) Product mass Product number Color quantity per carton
G-TORPEDO LEVEL 16(19)x43x230 115g ED-23GTOLMB Black 6
115g ED-23GTOLMR Red 6
115g ED-23GTOLMY Yellow 6
115g ED-23GTOLMW Whire 6
115g ED-23GTOLMH Gray 6
Please request for documents to person who hopes for download of high-resolution imagery. ID is issued.REQUEST for DOCUMENTS and INQUIRY
