Each kind of level

ED-TBOX TOBI BOX LEVEL
About sensitivity and accuracy
Function marking descriptions Phosphorescent / Lens / V groove / Super powerful

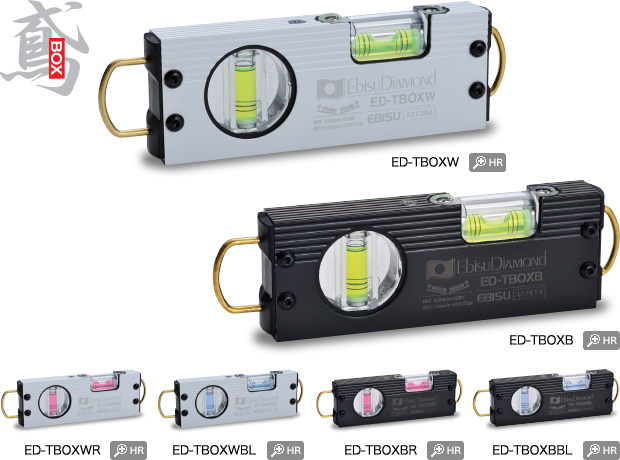

pp30.jpg ED-TBOXW ED-TBOXB ED-TBOXWR ED-TBOXWBL ED-TBOXBR ED-TBOXBBL
Feature of this product

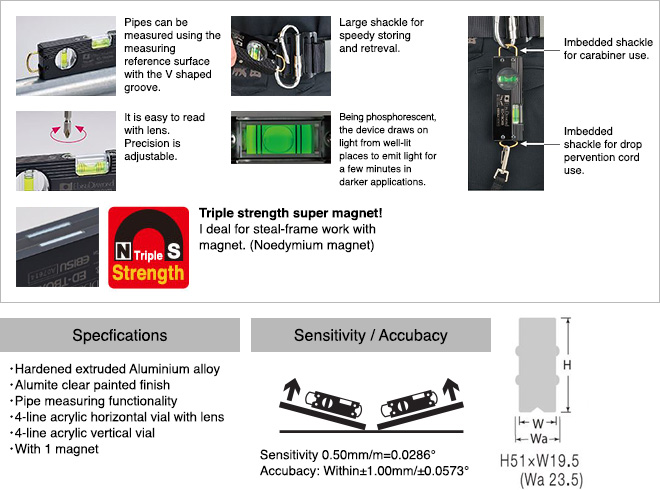

Pipes can be measured using the measuring reference surface with the V shaped groove. It is easy to read with lens. Precision is adjustable. Large shackle for speedy storing and retrieval. Being phosphorescent, the device draws on light from well-lit places to emit light for a few minutes in darker applications. Imbedded shackle for carabiner use. Imbedded shackle for drop pervention cord use. Triple strength super magnet! I deal for steal-frame work with magnet.(Noedymium magnet) Specfications ・Hardened extruded Aluminium alloy ・Alumite clear painted finish ・Pipe measuring functionality ・4-line acrylic horizontal vial with lens ・4-line acrylic vertical vial ・With 1 magnet SENSITIVITY / ACCURACY Sensitivity 0.50mm/m=0.0286˚ Accuracy: Within ±1.00mm/m±0.0573˚

Names Size(mm) Product mass Product number Body color Color quantity
per carton
TOBI BOX LEVEL 19.5×51×175 185g ED-TBOXW White Green 6
ED-TBOXWR Red
ED-TBOXWBL Blue
ED-TBOXB Black Green
ED-TBOXBR Red
ED-TBOXBBL Blue
